Name: DG611AEN-T1-E4
Brand: Vishay Siliconix
SKU: DG611AEN-T1-E4
Availability: InStock

REF: DG611AEN-T1-E4 Vishay Siliconix

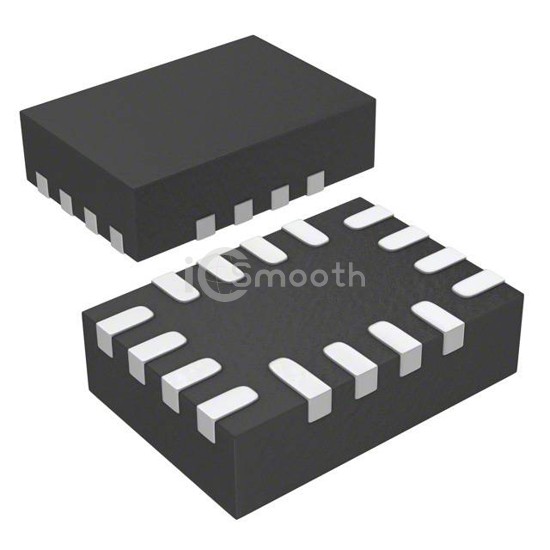

DG611AEN-T1-E4

IC SWITCH QUAD SPST 16MINIQFN

DG611AEN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH QUAD SPST 16MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN, number of circuits 4.

Datasheet Request a Quote

In Stock: 1,752

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	115Ohm
Channel-to-Channel Matching (ΔRon)	700mOhm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	±2.7V ~ 5V
Switch Time (Ton, Toff) (Max)	55ns, 35ns

-3db Bandwidth	720MHz
Charge Injection	1pC
Channel Capacitance (CS(off), CD(off))	2pF, 3pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-90dB @ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
