Name: DG509BEN-T1-GE4
Brand: Vishay Siliconix
SKU: DG509BEN-T1-GE4
Price: 2.17 USD
Availability: InStock

REF: DG509BEN-T1-GE4 Vishay Siliconix

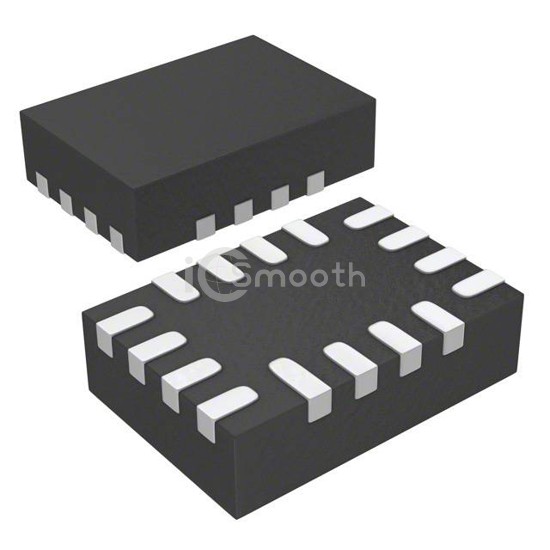

DG509BEN-T1-GE4

Vishay Siliconix

IC MUX ANALOG SINGLE 8CH 16QFN

DG509BEN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX ANALOG SINGLE 8CH 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,568

Tiered Pricing USD

1+ $2.1700 —

10+ $1.6050 -26%

25+ $1.4636 -33%

100+ $1.3082 -40%

250+ $1.2342 -43%

500+ $1.1896 -45%

1,000+ $1.1528 -47% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	380Ohm
Channel-to-Channel Matching (ΔRon)	10Ohm
Voltage - Supply, Single (V+)	12V
Voltage - Supply, Dual (V±)	±5V ~ 20V
Switch Time (Ton, Toff) (Max)	250ns, 240ns

-3db Bandwidth	250MHz
Charge Injection	2pC
Channel Capacitance (CS(off), CD(off))	3pF, 8pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-88dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
