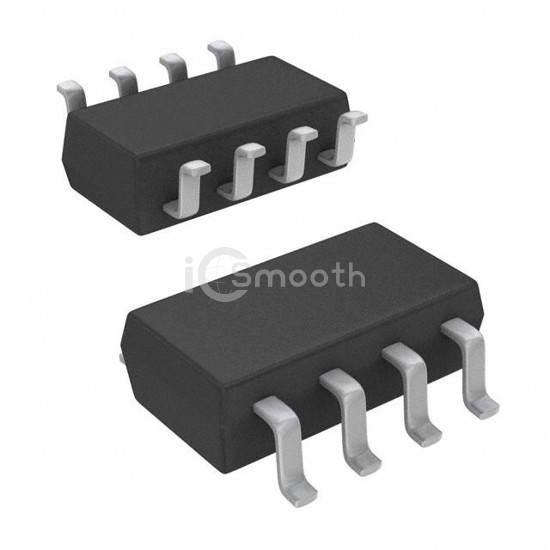

Name: DG449DS-T1-E3
Brand: Vishay Siliconix
SKU: DG449DS-T1-E3
Price: 1.47 USD
Availability: InStock

REF: DG449DS-T1-E3 Vishay Siliconix

DG449DS-T1-E3

Vishay Siliconix

IC SWITCH SINGLE SPDT SOT23-8

DG449DS-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SINGLE SPDT SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-8, number of circuits 1.

Datasheet Request a Quote

In Stock: 9,416

Tiered Pricing USD

1+ $1.4700 —

10+ $1.0690 -27%

25+ $0.9696 -34%

100+ $0.8606 -41%

250+ $0.8085 -45%

500+ $0.7772 -47%

1,000+ $0.7514 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	45Ohm
Channel-to-Channel Matching (ΔRon)	5Ohm (Max)
Voltage - Supply, Single (V+)	7V ~ 36V
Voltage - Supply, Dual (V±)	±4.5V ~ 20V
Switch Time (Ton, Toff) (Max)	146ns, 104ns

-3db Bandwidth	-
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	8pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-80dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-8
Supplier Device Package	SOT-23-8
