Name: DG407BDN-T1
Brand: Vishay Siliconix
SKU: DG407BDN-T1
Availability: InStock

REF: DG407BDN-T1 Vishay Siliconix

DG407BDN-T1

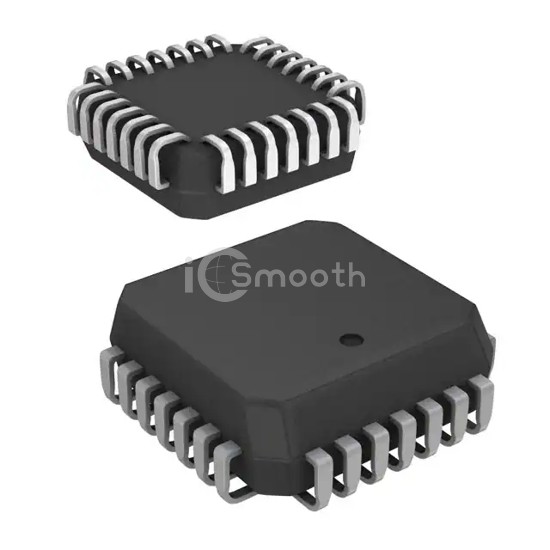

IC MUX CMOS ANLG DUAL 8CH 28PLCC

DG407BDN-T1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX CMOS ANLG DUAL 8CH 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 28-LCC (J-Lead), number of circuits 2.

Datasheet Request a Quote

In Stock: 8,878

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	2
On-State Resistance (Max)	60Ohm
Channel-to-Channel Matching (ΔRon)	3Ohm
Voltage - Supply, Single (V+)	12V
Voltage - Supply, Dual (V±)	±5V ~ 20V
Switch Time (Ton, Toff) (Max)	107ns, 88ns

-3db Bandwidth	-
Charge Injection	11pC
Channel Capacitance (CS(off), CD(off))	6pF, 54pF
Current - Leakage (IS(off)) (Max)	500pA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	28-LCC (J-Lead)
Supplier Device Package	28-PLCC (11.51x11.51)
