Name: DG4052EEN-T1-GE4
Brand: Vishay Siliconix
SKU: DG4052EEN-T1-GE4
Price: 1.47 USD
Availability: InStock

REF: DG4052EEN-T1-GE4 Vishay Siliconix

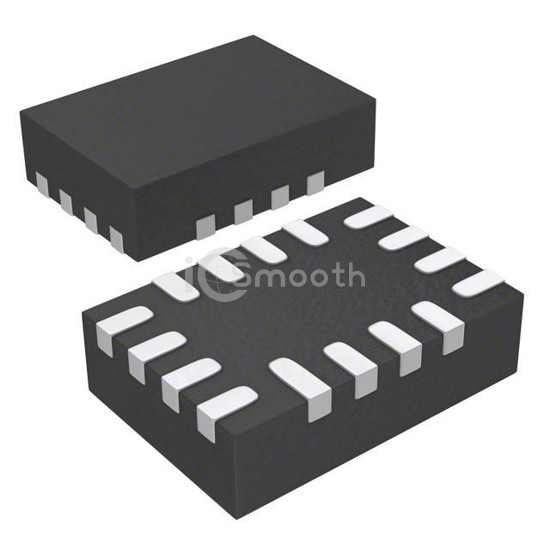

DG4052EEN-T1-GE4

Vishay Siliconix

IC MUX DUAL 4CHAN 16-MINIQFN

DG4052EEN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX DUAL 4CHAN 16-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 29,319

Tiered Pricing USD

1+ $1.4700 —

10+ $1.0690 -27%

25+ $0.9696 -34%

100+ $0.8606 -41%

250+ $0.8085 -45%

500+ $0.7772 -47%

1,000+ $0.7514 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	78Ohm
Channel-to-Channel Matching (ΔRon)	910mOhm
Voltage - Supply, Single (V+)	3V ~ 16V
Voltage - Supply, Dual (V±)	±3V ~ 8V
Switch Time (Ton, Toff) (Max)	75ns, 88ns

-3db Bandwidth	353MHz
Charge Injection	0.3pC
Channel Capacitance (CS(off), CD(off))	2.2pF, 4.8pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-105dB @ 100kHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
