Name: DG4052AEN-T1-E4
Brand: Vishay Siliconix
SKU: DG4052AEN-T1-E4
Availability: InStock

REF: DG4052AEN-T1-E4 Vishay Siliconix

DG4052AEN-T1-E4

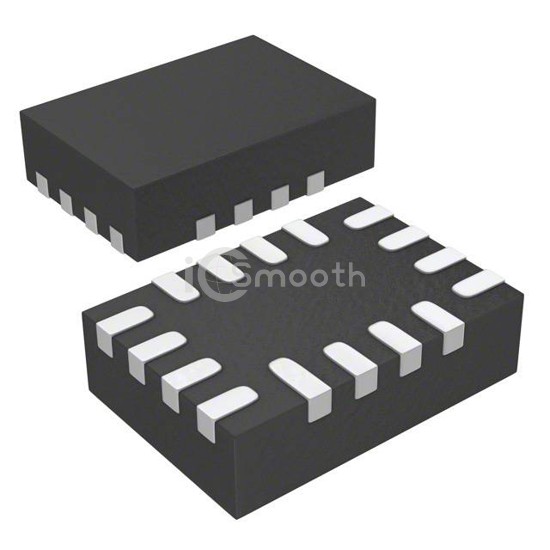

IC MUX DUAL 4CHAN 16-MINIQFN

DG4052AEN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MUX DUAL 4CHAN 16-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 5,961

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	100Ohm
Channel-to-Channel Matching (ΔRon)	3Ohm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	±2.5V ~ 5V
Switch Time (Ton, Toff) (Max)	108ns, 92ns

-3db Bandwidth	450MHz
Charge Injection	0.25pC
Channel Capacitance (CS(off), CD(off))	3pF, 7pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-67dB @ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
