Name: DG3157BDN-T1-E4
Brand: Vishay Siliconix
SKU: DG3157BDN-T1-E4
Availability: InStock

REF: DG3157BDN-T1-E4 Vishay Siliconix

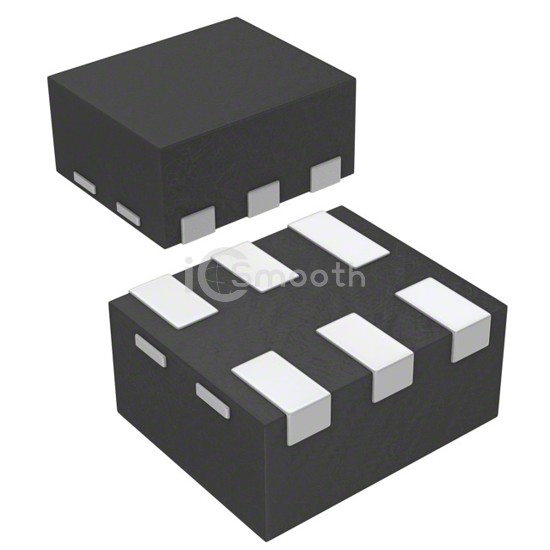

DG3157BDN-T1-E4

IC SWITCH SPDT 300MHZ 6-MINIQFN

DG3157BDN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SPDT 300MHZ 6-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 8,971

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	15Ohm
Channel-to-Channel Matching (ΔRon)	800mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	25ns, 21ns

-3db Bandwidth	300MHz
Charge Injection	7pC
Channel Capacitance (CS(off), CD(off))	7pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-64dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-miniQFN (1x1.2)
