Name: DG2799DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2799DN-T1-E4
Price: 1.11 USD
Availability: InStock

REF: DG2799DN-T1-E4 Vishay Siliconix

DG2799DN-T1-E4

Vishay Siliconix

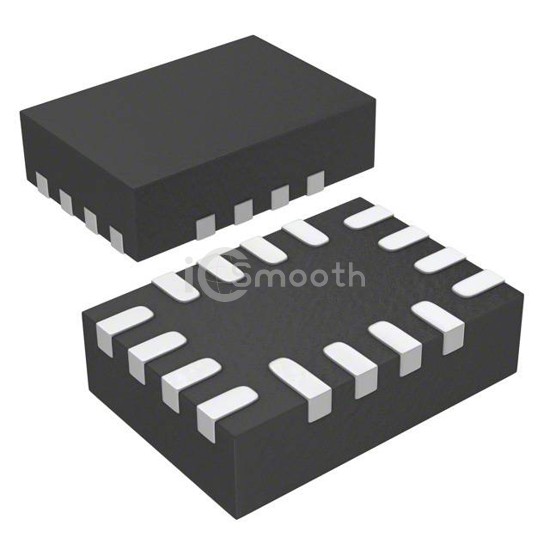

IC SWITCH DUAL DPDT 16QFN

DG2799DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL DPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 7,431

Tiered Pricing USD

2,500+ $1.1073 —

5,000+ $1.0841 -2%

7,500+ $1.0724 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	450mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	57ns, 45ns

-3db Bandwidth	-
Charge Injection	160pC
Channel Capacitance (CS(off), CD(off))	102pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-75dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
