Name: DG2789DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2789DN-T1-E4
Availability: InStock

REF: DG2789DN-T1-E4 Vishay Siliconix

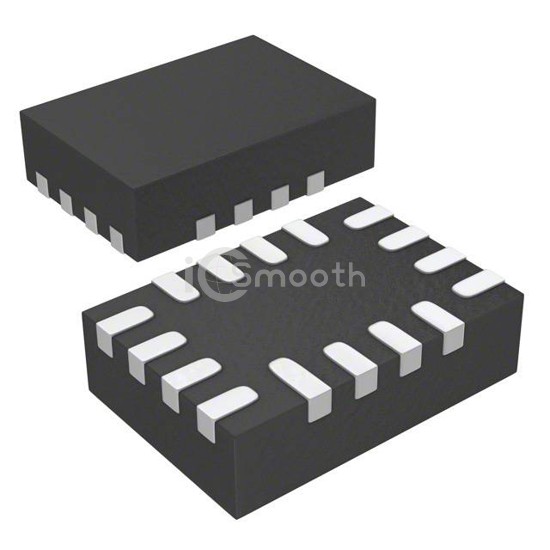

DG2789DN-T1-E4

IC SWITCH LV 4CH SPDT 16MINIQFN

DG2789DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH LV 4CH SPDT 16MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN, number of circuits 4.

Datasheet Request a Quote

In Stock: 6,576

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	72ns, 43ns

-3db Bandwidth	-
Charge Injection	87pC
Channel Capacitance (CS(off), CD(off))	81pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-96dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
