Name: DG2788ADN-T1-E4
Brand: Vishay Siliconix
SKU: DG2788ADN-T1-E4
Availability: InStock

REF: DG2788ADN-T1-E4 Vishay Siliconix

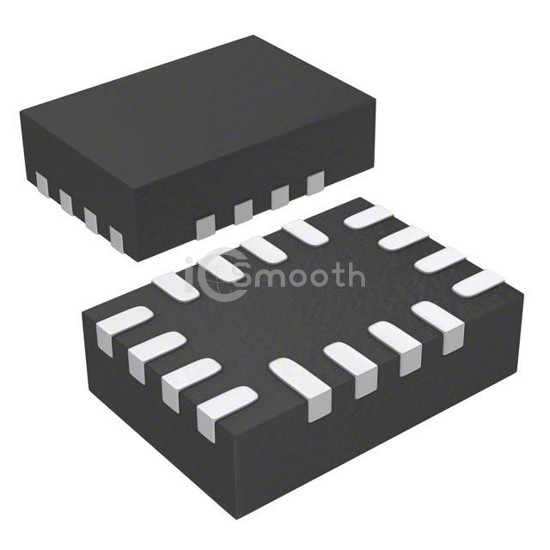

DG2788ADN-T1-E4

IC SWITCH DUAL DPDT MINIQFN16

DG2788ADN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL DPDT MINIQFN16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 4,338

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50µs, 1µs

-3db Bandwidth	338MHz
Charge Injection	-245pC
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-61dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-UFQFN
Supplier Device Package	16-miniQFN (1.8x2.6)
