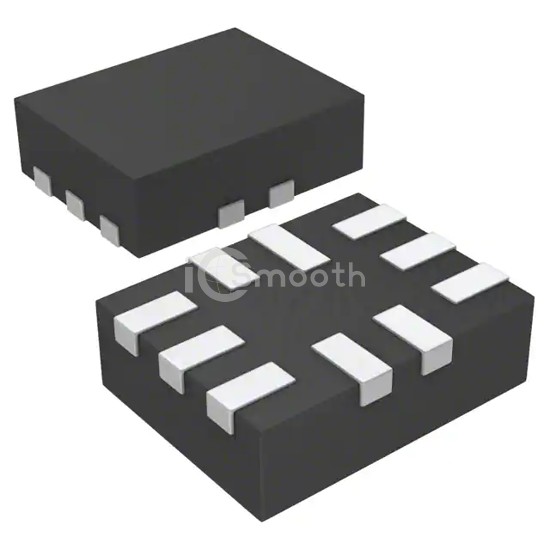

Name: DG2750DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2750DN-T1-E4
Price: 1.75 USD
Availability: InStock

REF: DG2750DN-T1-E4 Vishay Siliconix

DG2750DN-T1-E4

Vishay Siliconix

IC SWITCH LV DUAL SPST 10MINIQFN

DG2750DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH LV DUAL SPST 10MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,655

Tiered Pricing USD

1+ $1.7500 —

10+ $1.2850 -27%

25+ $1.1688 -33%

100+ $1.0407 -41%

250+ $0.9796 -44%

500+ $0.9428 -46%

1,000+ $0.9125 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	1Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	2.1µs, 130ns

-3db Bandwidth	49MHz
Charge Injection	4pC
Channel Capacitance (CS(off), CD(off))	36pF
Current - Leakage (IS(off)) (Max)	50nA (Typ)
Crosstalk	-60dB @ 300kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-miniQFN (1.4x1.8)
