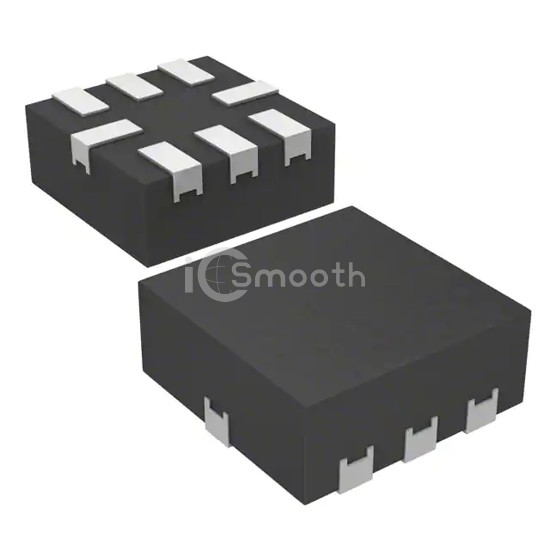

Name: DG2737DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2737DN-T1-E4
Price: 0.41 USD
Availability: InStock

REF: DG2737DN-T1-E4 Vishay Siliconix

DG2737DN-T1-E4

Vishay Siliconix

IC SWITCH 2XSPST 8 OHM 8MINIQFN

DG2737DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH 2XSPST 8 OHM 8MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFQFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 56

Tiered Pricing USD

6,000+ $0.4129 —

12,000+ $0.4046 -2%

18,000+ $0.4005 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	8Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	2.3V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	60ns, 50ns

-3db Bandwidth	720MHz
Charge Injection	10.4pC
Channel Capacitance (CS(off), CD(off))	4.4pF, 3.8pF
Current - Leakage (IS(off)) (Max)	10nA
Crosstalk	-109dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-UFQFN
Supplier Device Package	8-miniQFN (1.4x1.4)
