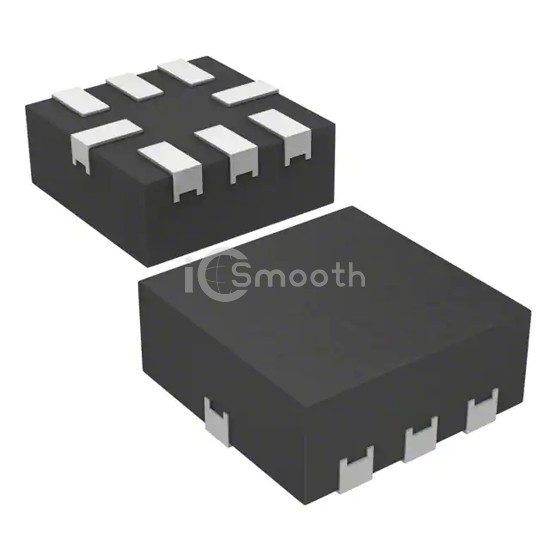

Name: DG2735DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2735DN-T1-E4
Availability: InStock

REF: DG2735DN-T1-E4 Vishay Siliconix

DG2735DN-T1-E4

IC SWITCH 2XSPDT 500MOHM MINIQFN

DG2735DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH 2XSPDT 500MOHM MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,906

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	60mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	78ns, 58ns

-3db Bandwidth	50MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	55pF
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-70dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-UFQFN
Supplier Device Package	8-miniQFN (1.4x1.4)
