Name: DG2730DN-T1-GE4
Brand: Vishay Siliconix
SKU: DG2730DN-T1-GE4
Price: 1.47 USD
Availability: InStock

REF: DG2730DN-T1-GE4 Vishay Siliconix

DG2730DN-T1-GE4

Vishay Siliconix

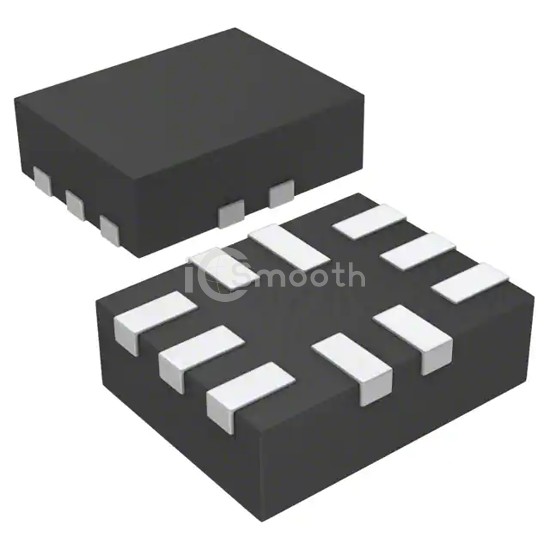

IC SWITCH DPDT 8 OHM 10MINIQFN

DG2730DN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DPDT 8 OHM 10MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 8,163

Tiered Pricing USD

1+ $1.4700 —

10+ $1.0690 -27%

25+ $0.9696 -34%

100+ $0.8606 -41%

250+ $0.8085 -45%

500+ $0.7918 -46% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	1
On-State Resistance (Max)	8Ohm
Channel-to-Channel Matching (ΔRon)	800mOhm
Voltage - Supply, Single (V+)	2.6V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 25ns

-3db Bandwidth	900MHz
Charge Injection	0.5pC
Channel Capacitance (CS(off), CD(off))	2.2pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-45dB @ 240MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-miniQFN (1.4x1.8)
