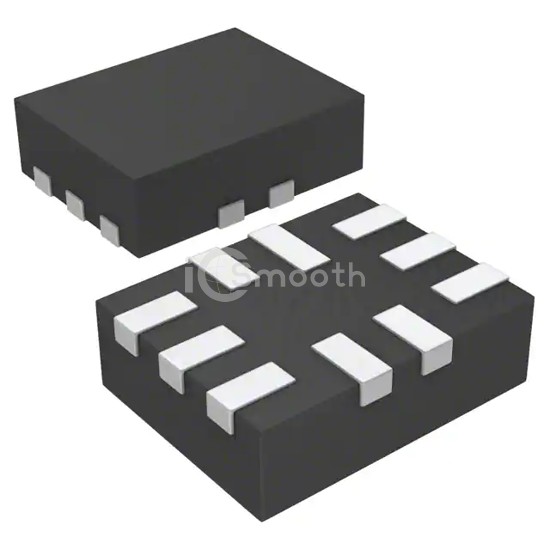

Name: DG2723DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2723DN-T1-E4
Price: 1.47 USD
Availability: InStock

REF: DG2723DN-T1-E4 Vishay Siliconix

DG2723DN-T1-E4

Vishay Siliconix

IC SWITCH DUAL SPDT 10MINIQFN

DG2723DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 10MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,997

Tiered Pricing USD

1+ $1.4700 —

10+ $1.0690 -27%

25+ $0.9696 -34%

100+ $0.8606 -41%

250+ $0.8085 -45%

500+ $0.7772 -47%

1,000+ $0.7514 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	8Ohm
Channel-to-Channel Matching (ΔRon)	800mOhm
Voltage - Supply, Single (V+)	2.6V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 25ns

-3db Bandwidth	700MHz
Charge Injection	3pC
Channel Capacitance (CS(off), CD(off))	2.5pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-36dB @ 240MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-miniQFN (1.4x1.8)
