Name: DG2720DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2720DN-T1-E4
Price: 0.68 USD
Availability: InStock

REF: DG2720DN-T1-E4 Vishay Siliconix

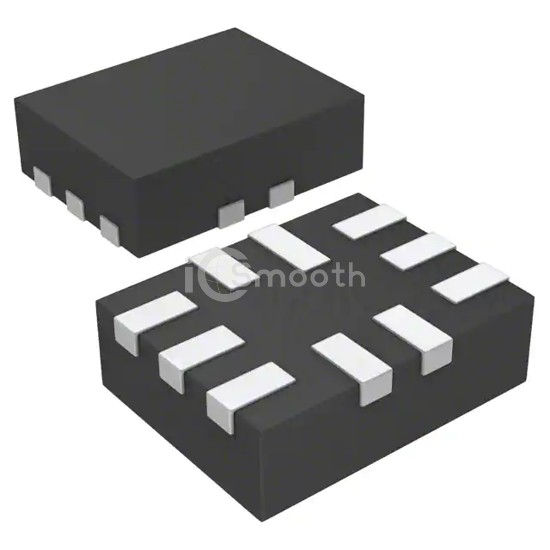

DG2720DN-T1-E4

Vishay Siliconix

IC SWITCH DPDT USB2.0 10-MINIQFN

DG2720DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DPDT USB2.0 10-MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 8,169

Tiered Pricing USD

6,000+ $0.6779 —

9,000+ $0.6703 -1%

15,000+ $0.6619 -2% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	7Ohm
Channel-to-Channel Matching (ΔRon)	350mOhm
Voltage - Supply, Single (V+)	2.6V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 25ns

-3db Bandwidth	620MHz
Charge Injection	0.5pC
Channel Capacitance (CS(off), CD(off))	4pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-49dB @ 240MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-miniQFN (1.4x1.8)
