Name: DG2535EDN-T1-GE4
Brand: Vishay Siliconix
SKU: DG2535EDN-T1-GE4
Price: 1.38 USD
Availability: InStock

REF: DG2535EDN-T1-GE4 Vishay Siliconix

DG2535EDN-T1-GE4

Vishay Siliconix

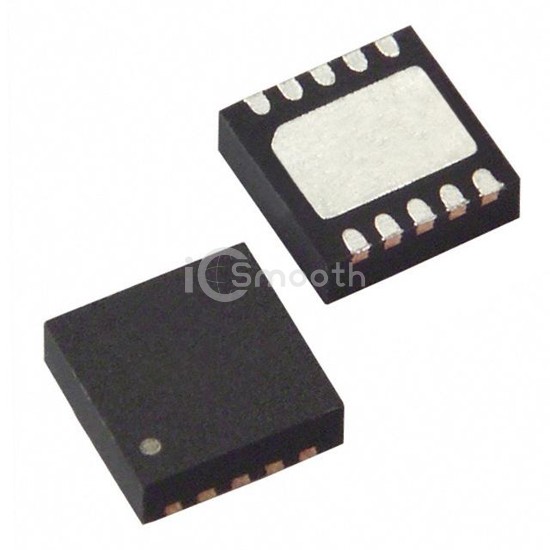

IC ANALOG SWITCH DUAL 10QFN

DG2535EDN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC ANALOG SWITCH DUAL 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,951

Tiered Pricing USD

1+ $1.3800 —

10+ $1.0030 -27%

25+ $0.9096 -34%

100+ $0.8062 -42%

250+ $0.7570 -45%

500+ $0.7273 -47%

1,000+ $0.7028 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	60mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	78ns, 58ns

-3db Bandwidth	120MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-90dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
