Name: DG2535DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2535DN-T1-E4
Availability: InStock

REF: DG2535DN-T1-E4 Vishay Siliconix

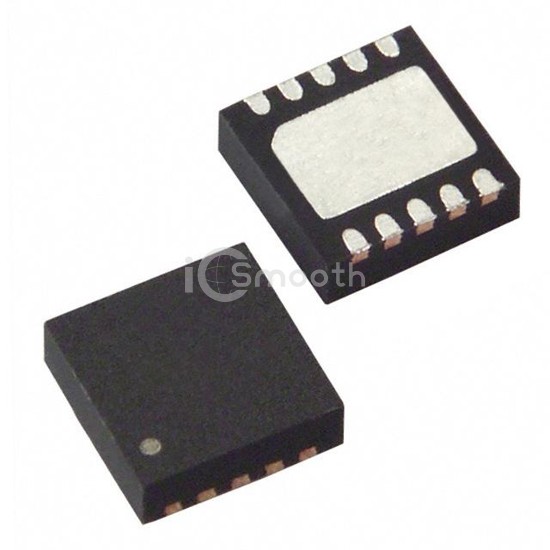

DG2535DN-T1-E4

IC SWITCH LV DUAL SPST 10DFN

DG2535DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH LV DUAL SPST 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 9,233

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	500mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm (Max)
Voltage - Supply, Single (V+)	3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	82ns, 73ns

-3db Bandwidth	-
Charge Injection	21pC
Channel Capacitance (CS(off), CD(off))	145pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-69dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
