Name: DG2520DV-T1-E3
Brand: Vishay Siliconix
SKU: DG2520DV-T1-E3
Price: 0.63 USD
Availability: InStock

REF: DG2520DV-T1-E3 Vishay Siliconix

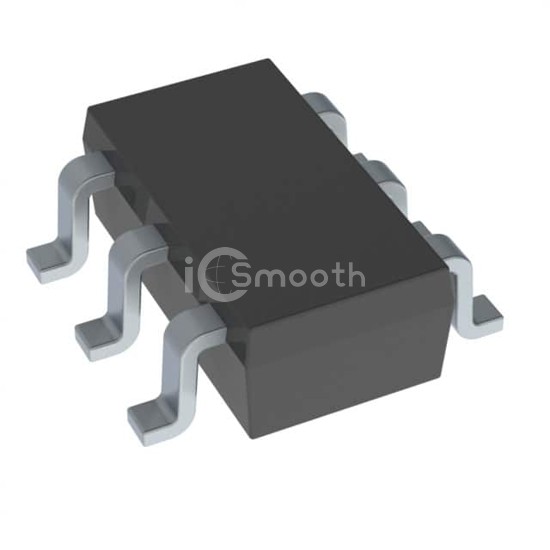

DG2520DV-T1-E3

Vishay Siliconix

IC SWITCH DUAL SPDT 6TSOP

DG2520DV-T1-E3 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SOT-23-6 Thin, TSOT-23-6, number of circuits 1.

Datasheet Request a Quote

In Stock: 4,599

Tiered Pricing USD

3,000+ $0.6278 —

6,000+ $0.6139 -2%

9,000+ $0.6069 -3%

15,000+ $0.5991 -5% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	800mOhm
Channel-to-Channel Matching (ΔRon)	60mOhm (Max)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	35ns, 15ns

-3db Bandwidth	40MHz
Charge Injection	224pC
Channel Capacitance (CS(off), CD(off))	50pF
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-57dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	6-TSOP
