Name: DG2518DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2518DN-T1-E4
Price: 0.77 USD
Availability: InStock

REF: DG2518DN-T1-E4 Vishay Siliconix

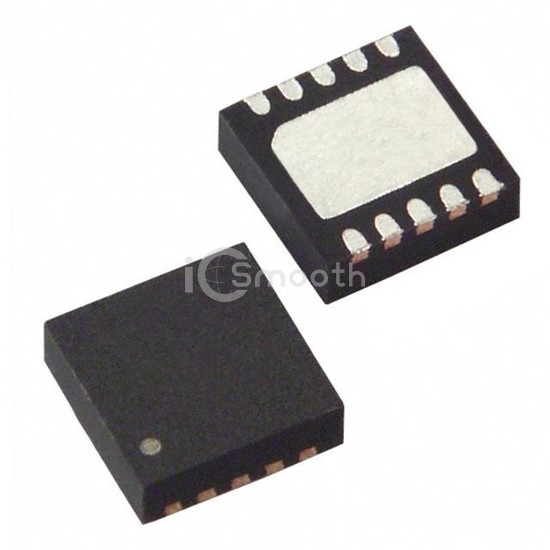

DG2518DN-T1-E4

Vishay Siliconix

IC SWITCH DUAL SPDT 10DFN

DG2518DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 7,495

Tiered Pricing USD

2,500+ $0.7684 —

5,000+ $0.7511 -2%

7,500+ $0.7425 -3%

12,500+ $0.7329 -5% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	4Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	25ns, 20ns

-3db Bandwidth	242MHz
Charge Injection	2pC
Channel Capacitance (CS(off), CD(off))	8pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-73dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
