Name: DG2517EDN-T1-GE4
Brand: Vishay Siliconix
SKU: DG2517EDN-T1-GE4
Price: 1.75 USD
Availability: InStock

REF: DG2517EDN-T1-GE4 Vishay Siliconix

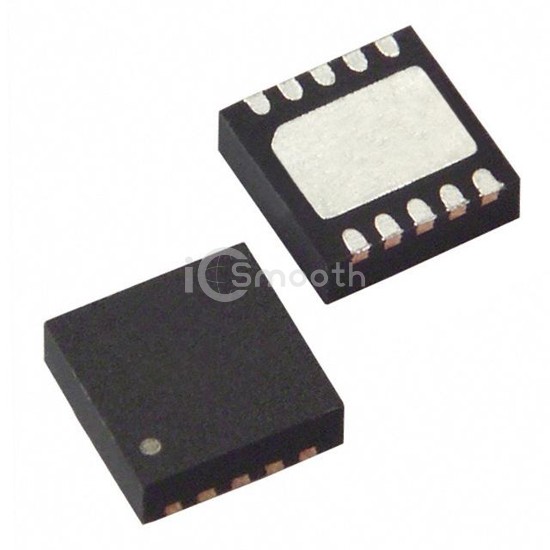

DG2517EDN-T1-GE4

Vishay Siliconix

IC SWITCH DUAL SPDT 10DFN

DG2517EDN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL SPDT 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFDFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,163

Tiered Pricing USD

1+ $1.7500 —

10+ $1.2850 -27%

25+ $1.1688 -33%

100+ $1.0407 -41%

250+ $0.9796 -44%

500+ $0.9428 -46%

1,000+ $0.9125 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	3.1Ohm
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	40ns, 33ns

-3db Bandwidth	221MHz
Charge Injection	-19.4pC
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-62dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-DFN (3x3)
