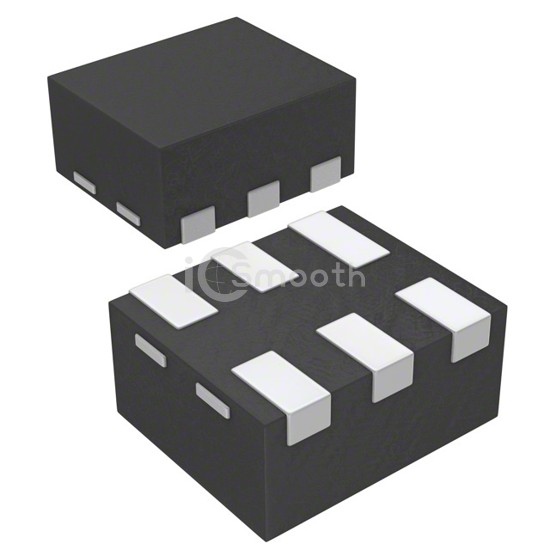

Name: DG2513DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2513DN-T1-E4
Price: 0.42 USD
Availability: InStock

REF: DG2513DN-T1-E4 Vishay Siliconix

DG2513DN-T1-E4

Vishay Siliconix

IC SWITCH DUAL LV 6MINIQFN

DG2513DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH DUAL LV 6MINIQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 6,491

Tiered Pricing USD

3,000+ $0.4230 —

6,000+ $0.4129 -2%

9,000+ $0.4079 -4%

15,000+ $0.4023 -5%

21,000+ $0.3990 -6% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	1.3Ohm
Channel-to-Channel Matching (ΔRon)	150mOhm (Max)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	35ns, 31ns

-3db Bandwidth	-
Charge Injection	14pC
Channel Capacitance (CS(off), CD(off))	19pF
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-64dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-miniQFN (1x1.2)
