Name: DG2502DB-T2-GE1
Brand: Vishay Siliconix
SKU: DG2502DB-T2-GE1
Price: 1.37 USD
Availability: InStock

REF: DG2502DB-T2-GE1 Vishay Siliconix

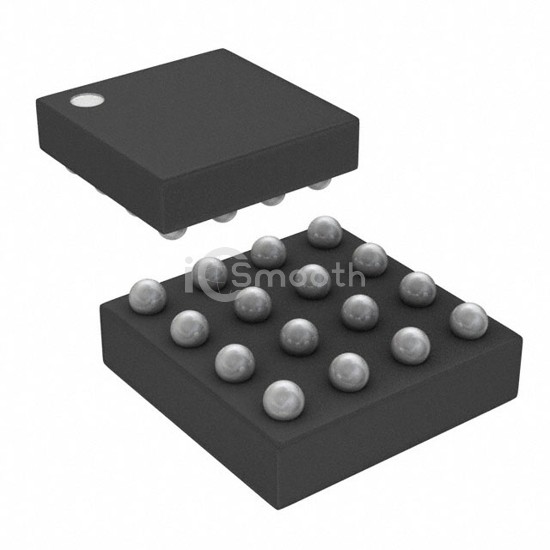

DG2502DB-T2-GE1

Vishay Siliconix

IC SWITCH SPST 150 OHM 16WCSP

DG2502DB-T2-GE1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SPST 150 OHM 16WCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-XFBGA, WLCSP, number of circuits 4.

Datasheet Request a Quote

In Stock: 12,000

Tiered Pricing USD

1+ $1.3700 —

10+ $0.9970 -27%

25+ $0.9036 -34%

100+ $0.8008 -42%

250+ $0.7518 -45%

500+ $0.7223 -47%

1,000+ $0.6980 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	200Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	100ns, 60ns

-3db Bandwidth	550MHz
Charge Injection	-2pC
Channel Capacitance (CS(off), CD(off))	2.9pF, 2.8pF
Current - Leakage (IS(off)) (Max)	400pA
Crosstalk	-83dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-XFBGA, WLCSP
Supplier Device Package	16-WCSP (1.44x1.44)
