Name: DG2034EDN-T1-GE4
Brand: Vishay Siliconix
SKU: DG2034EDN-T1-GE4
Price: 1.44 USD
Availability: InStock

REF: DG2034EDN-T1-GE4 Vishay Siliconix

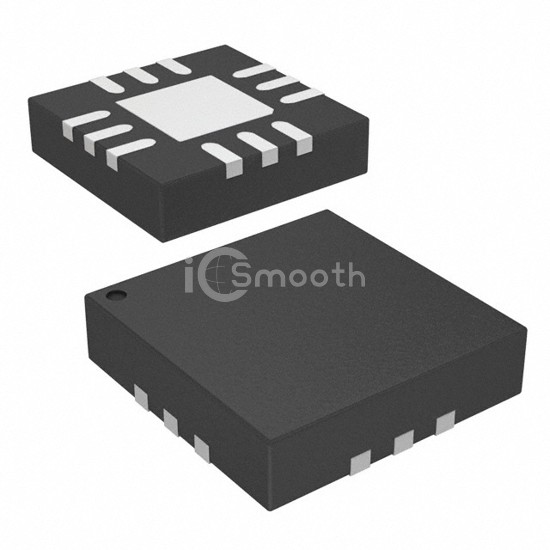

DG2034EDN-T1-GE4

Vishay Siliconix

IC SWITCH SP4T SINGLE 12QFN

DG2034EDN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH SP4T SINGLE 12QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-VFQFN Exposed Pad, number of circuits 1.

Datasheet Request a Quote

In Stock: 24,760

Tiered Pricing USD

1+ $1.4400 —

10+ $1.0470 -27%

25+ $0.9496 -34%

100+ $0.8425 -41%

250+ $0.7914 -45%

500+ $0.7605 -47%

1,000+ $0.7352 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	1
On-State Resistance (Max)	2.5Ohm
Channel-to-Channel Matching (ΔRon)	20mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	25ns, 20ns

-3db Bandwidth	166MHz
Charge Injection	-2.6pC
Channel Capacitance (CS(off), CD(off))	7pF, -
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-71dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-VFQFN Exposed Pad
Supplier Device Package	12-QFN (3x3)
