Name: DG2034DN-T1-E4
Brand: Vishay Siliconix
SKU: DG2034DN-T1-E4
Availability: InStock

REF: DG2034DN-T1-E4 Vishay Siliconix

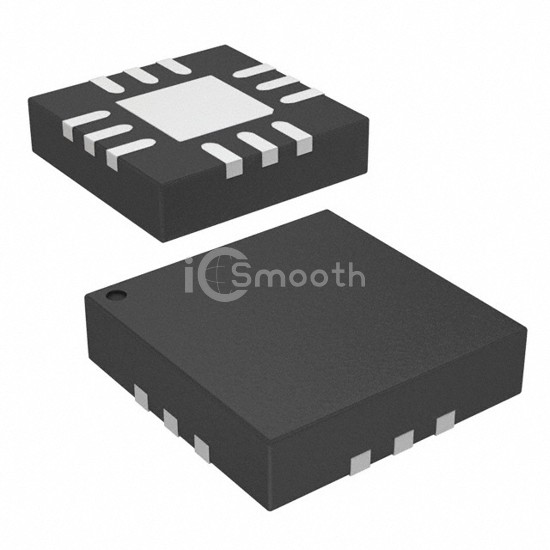

DG2034DN-T1-E4

IC MULTIPLEXER 4X1 12QFN

DG2034DN-T1-E4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC MULTIPLEXER 4X1 12QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-VFQFN Exposed Pad, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,155

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	1
On-State Resistance (Max)	5.5Ohm
Channel-to-Channel Matching (ΔRon)	160mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	30ns, 20ns

-3db Bandwidth	-
Charge Injection	-4.4pC
Channel Capacitance (CS(off), CD(off))	13pF, 43pF
Current - Leakage (IS(off)) (Max)	1nA
Crosstalk	-77dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-VFQFN Exposed Pad
Supplier Device Package	12-QFN (3x3)
