Name: SFH6701
Brand: Vishay Semiconductor Opto Division
SKU: SFH6701
Availability: InStock

REF: SFH6701 Vishay Semiconductor Opto Division

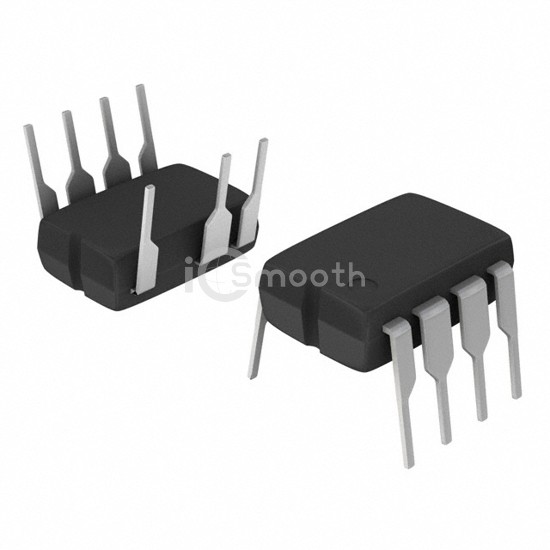

SFH6701

OPTOISO 5.3KV PUSH PULL 8DIP

SFH6701 is a Optoisolators - Logic Output manufactured by Vishay Semiconductor Opto Division. OPTOISO 5.3KV PUSH PULL 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 15V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 7,070

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5300Vrms
Common Mode Transient Immunity (Min)	1kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	25 mA
Data Rate	5MBd

Propagation Delay tpLH / tpHL (Max)	300ns, 300ns
Rise / Fall Time (Typ)	40ns, 10ns
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	10mA
Voltage - Supply	4.5V ~ 15V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
