OPTOCOUPLER/DUAL TTL OUT

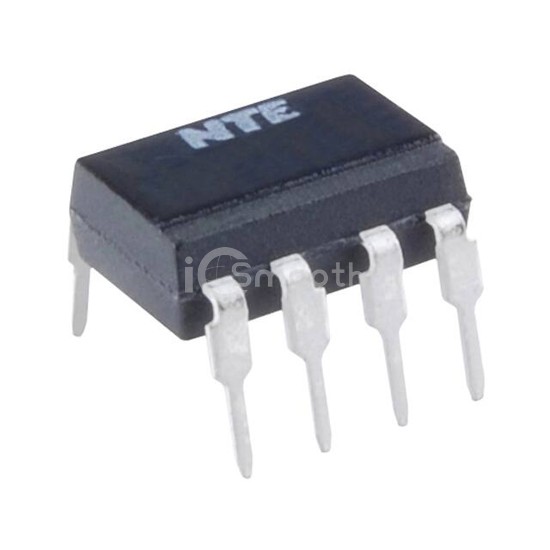

NTE3094 is a Optoisolators - Logic Output manufactured by NTE Electronics, Inc. OPTOCOUPLER/DUAL TTL OUT. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 29
| Product Status | Active |
|---|---|
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 3000VDC |
| Common Mode Transient Immunity (Min) | 500V/µs (Typ) |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 16 mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
|---|---|
| Rise / Fall Time (Typ) | 25ns, 35ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 15mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
