Name: VS-FC270SA20
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-FC270SA20
Price: 27.31 USD
Availability: InStock

REF: VS-FC270SA20 Vishay General Semiconductor - Diodes Division

VS-FC270SA20

Vishay General Semiconductor - Diodes Division

MOSFET N-CH 200V 287A SOT227

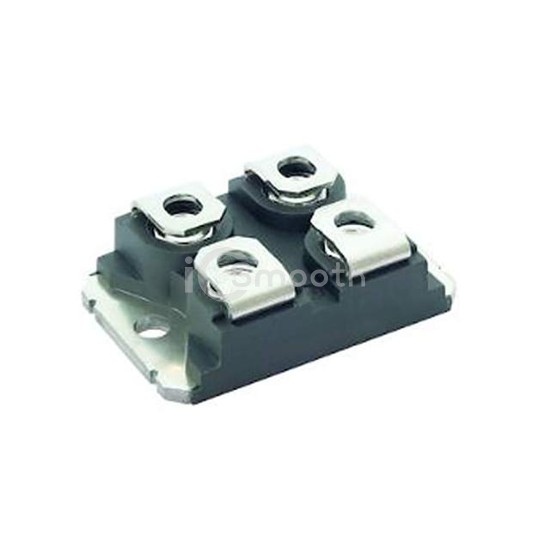

VS-FC270SA20 is a Transistors - FETs, MOSFETs - Single manufactured by Vishay General Semiconductor - Diodes Division. MOSFET N-CH 200V 287A SOT227. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC.

Datasheet Request a Quote

In Stock: 4,304

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	287A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.7mOhm @ 200A, 10V
Vgs(th) (Max) @ Id	4.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	250 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	16500 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	937W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227
Package / Case	SOT-227-4, miniBLOC
