Name: EDF1BS-E3/77
Brand: Vishay General Semiconductor - Diodes Division
SKU: EDF1BS-E3/77
Price: 1.80 USD
Availability: InStock

REF: EDF1BS-E3/77 Vishay General Semiconductor - Diodes Division

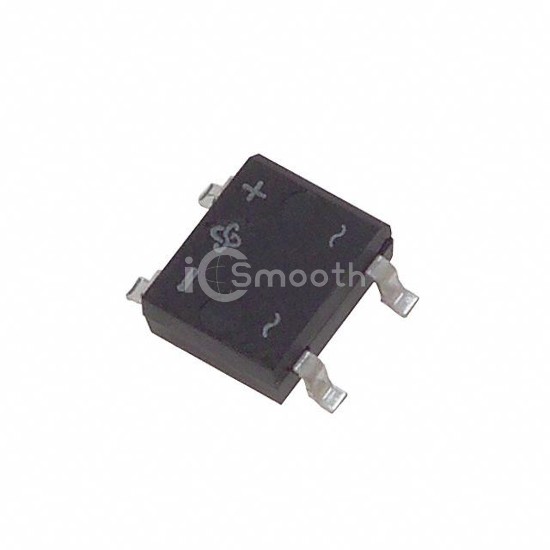

EDF1BS-E3/77

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 1PHASE 100V 1A DFS

EDF1BS-E3/77 is a Diodes - Bridge Rectifiers manufactured by Vishay General Semiconductor - Diodes Division. BRIDGE RECT 1PHASE 100V 1A DFS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 2,180

Tiered Pricing USD

1+ $1.8000 —

10+ $1.1440 -36%

100+ $0.7684 -57%

500+ $0.6073 -66% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	100 V
Current - Average Rectified (Io)	1 A
Voltage - Forward (Vf) (Max) @ If	1.05 V @ 1 A

Current - Reverse Leakage @ Vr	5 µA @ 100 V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	DFS
