Name: PI5101-01-LGIZ
Brand: Vicor Corporation
SKU: PI5101-01-LGIZ
Availability: InStock

REF: PI5101-01-LGIZ Vicor Corporation

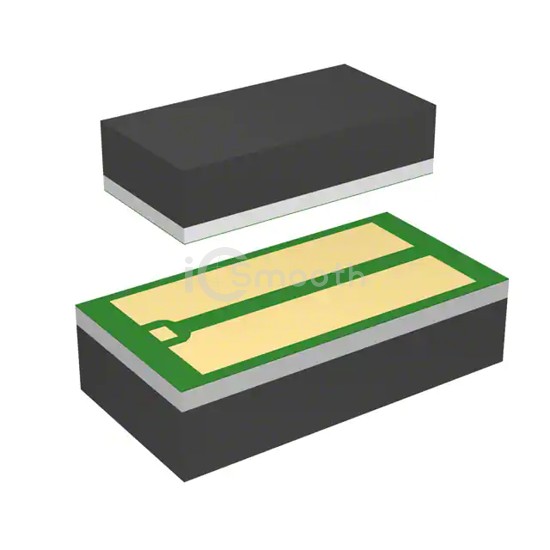

PI5101-01-LGIZ

MOSFET N-CH 5V 60A 3LGA

PI5101-01-LGIZ is a Transistors - FETs, MOSFETs - Single manufactured by Vicor Corporation. MOSFET N-CH 5V 60A 3LGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-FLGA.

Datasheet Request a Quote

In Stock: 4,283

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	5 V
Current - Continuous Drain (Id) @ 25°C	60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3.5V, 4.5V
Rds On (Max) @ Id, Vgs	0.45mOhm @ 60A, 4.5V
Vgs(th) (Max) @ Id	800mV @ 1mA
Gate Charge (Qg) (Max) @ Vgs	65 nC @ 4.5 V

Vgs (Max)	±5V
Input Capacitance (Ciss) (Max) @ Vds	7600 pF @ 5 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-LGA (4.1x8)
Package / Case	3-FLGA
