UJ4SC075011K4S

In Stock: 3,473

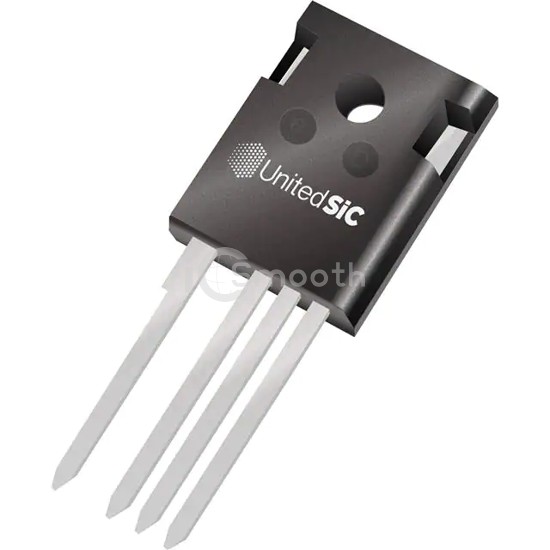

UJ4SC075011K4S - UnitedSiC - Transistors - FETs, MOSFETs - Single
REF: UJ4SC075011K4S UnitedSiC
UJ4SC075011K4S

UnitedSiC

750V/11MOHM, SIC, STACKED CASCOD

UJ4SC075011K4S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. 750V/11MOHM, SIC, STACKED CASCOD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 3,473

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)750 V
Current - Continuous Drain (Id) @ 25°C104A (Tc)
Drive Voltage (Max Rds On, Min Rds On)12V
Rds On (Max) @ Id, Vgs14.2mOhm @ 60A, 12V
Vgs(th) (Max) @ Id5.5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs75 nC @ 15 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3245 pF @ 400 V
FET Feature-
Power Dissipation (Max)357W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4
Package / CaseTO-247-4
