Name: UJ4SC075006K4S
Brand: UnitedSiC
SKU: UJ4SC075006K4S
Price: 70.31 USD
Availability: InStock

REF: UJ4SC075006K4S UnitedSiC

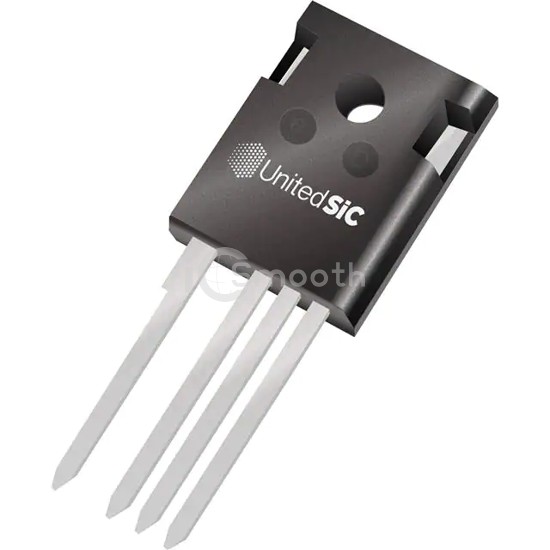

UJ4SC075006K4S

750V/6MOHM, SIC, STACKED CASCODE

UJ4SC075006K4S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. 750V/6MOHM, SIC, STACKED CASCODE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 6,391

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	750 V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	12V
Rds On (Max) @ Id, Vgs	7.4mOhm @ 80A, 12V
Vgs(th) (Max) @ Id	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	164 nC @ 15 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8374 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	714W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
