Name: UF4SC120030K4S
Brand: UnitedSiC
SKU: UF4SC120030K4S
Price: 26.83 USD
Availability: InStock

REF: UF4SC120030K4S UnitedSiC

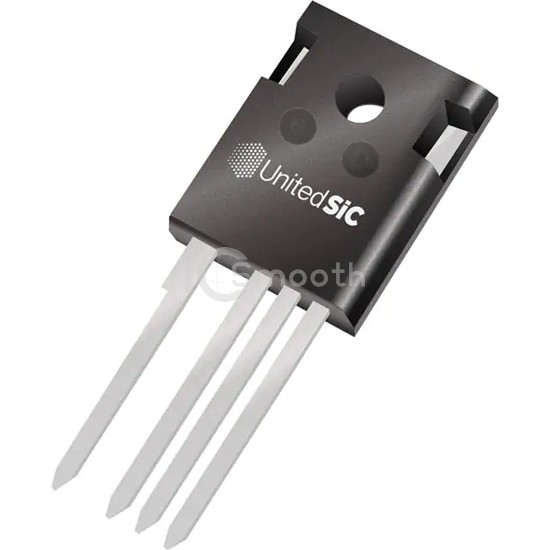

UF4SC120030K4S

1200V/30MOHM SIC STACKED FAST CA

UF4SC120030K4S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. 1200V/30MOHM SIC STACKED FAST CA. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 586

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	53A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	12V
Rds On (Max) @ Id, Vgs	39mOhm @ 20A, 12V
Vgs(th) (Max) @ Id	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	37.8 nC @ 800 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1450 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	341W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
