Name: UF3SC065040D8S
Brand: UnitedSiC
SKU: UF3SC065040D8S
Availability: InStock

REF: UF3SC065040D8S UnitedSiC

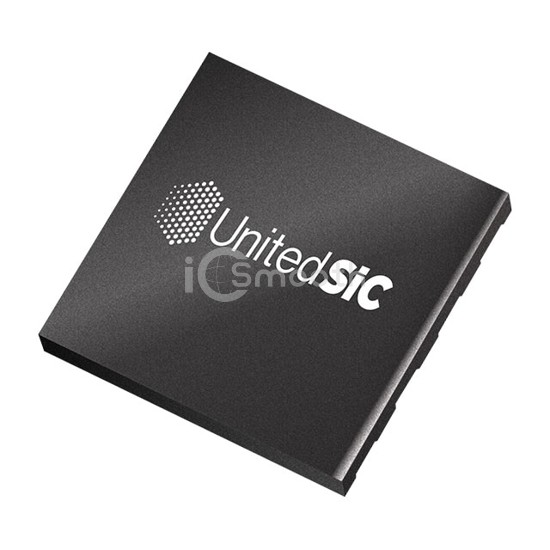

UF3SC065040D8S

SICFET N-CH 650V 18A 4DFN

UF3SC065040D8S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. SICFET N-CH 650V 18A 4DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-PowerTSFN.

Datasheet Request a Quote

In Stock: 9,544

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	SiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	12V
Rds On (Max) @ Id, Vgs	58mOhm @ 20A, 12V
Vgs(th) (Max) @ Id	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 12 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1500 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-DFN (8x8)
Package / Case	4-PowerTSFN
