Name: UF3SC065030B7S
Brand: UnitedSiC
SKU: UF3SC065030B7S
Price: 19.54 USD
Availability: InStock

REF: UF3SC065030B7S UnitedSiC

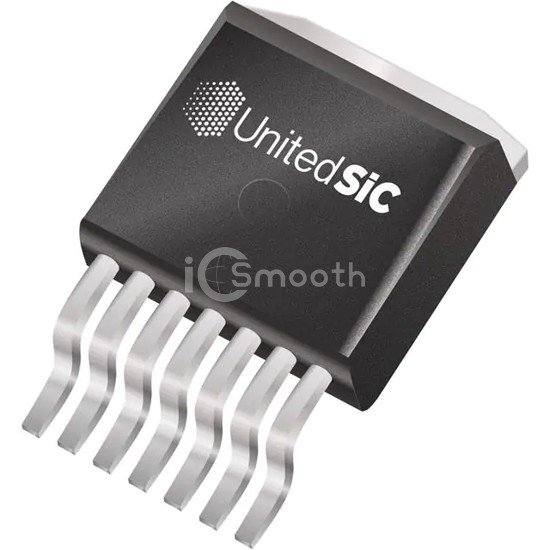

UF3SC065030B7S

650V/30MOHM, SIC, STACKED FAST C

UF3SC065030B7S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. 650V/30MOHM, SIC, STACKED FAST C. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 2,131

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	62A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	12V
Rds On (Max) @ Id, Vgs	35mOhm @ 40A, 12V
Vgs(th) (Max) @ Id	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 12 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1500 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	214W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
