Name: UF3C065080K4S
Brand: UnitedSiC
SKU: UF3C065080K4S
Price: 9.03 USD
Availability: InStock

REF: UF3C065080K4S UnitedSiC

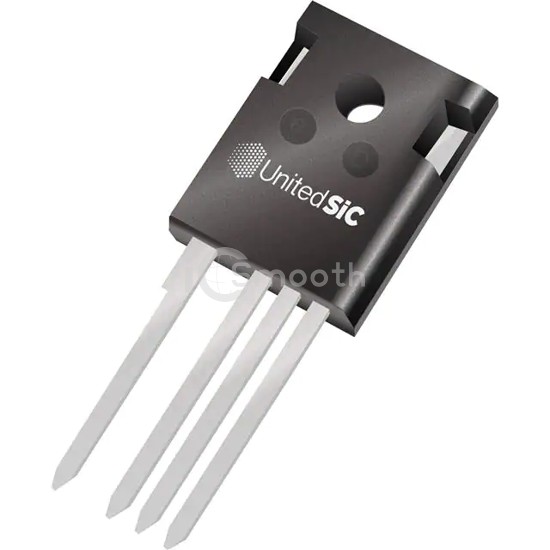

UF3C065080K4S

MOSFET N-CH 650V 31A TO247-4

UF3C065080K4S is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. MOSFET N-CH 650V 31A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 8,689

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	-
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	31A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	12V
Rds On (Max) @ Id, Vgs	100mOhm @ 20A, 12V
Vgs(th) (Max) @ Id	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	43 nC @ 12 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1500 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	190W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
