Name: UF3C065040B3
Brand: UnitedSiC
SKU: UF3C065040B3
Price: 14.09 USD
Availability: InStock

REF: UF3C065040B3 UnitedSiC

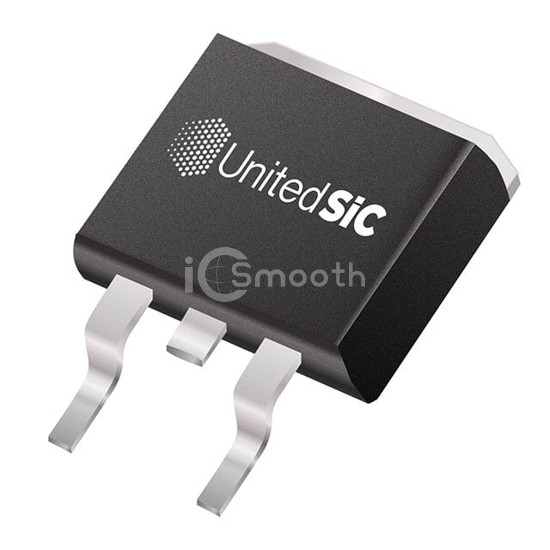

UF3C065040B3

MOSFET N-CH 650V 41A TO263

UF3C065040B3 is a Transistors - FETs, MOSFETs - Single manufactured by UnitedSiC. MOSFET N-CH 650V 41A TO263. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 800

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	-
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	41A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	12V
Rds On (Max) @ Id, Vgs	52mOhm @ 30A, 12V
Vgs(th) (Max) @ Id	6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 15 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1500 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	176W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D2Pak)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
