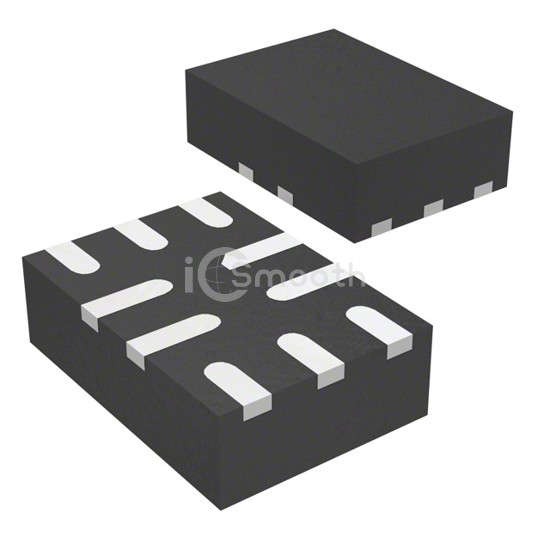

Name: UM9636
Brand: Union Semiconductor (HK) Limited
SKU: UM9636
Price: 1.00 USD
Availability: InStock

REF: UM9636 Union Semiconductor (HK) Limited

UM9636

Union Semiconductor (HK) Limited

Wide Band SPDT Switch

UM9636 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. Wide Band SPDT Switch. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 10,000

Tiered Pricing USD

2+ $1.0000 —

10+ $0.9200 -8%

100+ $0.7000 -30%

500+ $0.5900 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	125Ohm
Channel-to-Channel Matching (ΔRon)	10Ohm
Voltage - Supply, Single (V+)	2.7V ~ 12V
Voltage - Supply, Dual (V±)	2.7V ~ 12V
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	720MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
