Name: UM7222
Brand: Union Semiconductor (HK) Limited
SKU: UM7222
Price: 0.34 USD
Availability: InStock

REF: UM7222 Union Semiconductor (HK) Limited

UM7222

Union Semiconductor (HK) Limited

USB 2.0 DPDT SWITCH

UM7222 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. USB 2.0 DPDT SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 6,400

Tiered Pricing USD

2+ $0.3400 —

100+ $0.2600 -24%

500+ $0.2000 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	DPDT
Multiplexer/Demultiplexer Circuit	2:2
Number of Circuits	2
On-State Resistance (Max)	9Ohm
Channel-to-Channel Matching (ΔRon)	350mOhm
Voltage - Supply, Single (V+)	2.7V ~ 5.5V
Voltage - Supply, Dual (V±)	2.7V ~ 5.5V
Switch Time (Ton, Toff) (Max)	30ns, 25ns

-3db Bandwidth	550MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	2.5pF, 4.5pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-48dB @ 250MHz
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount

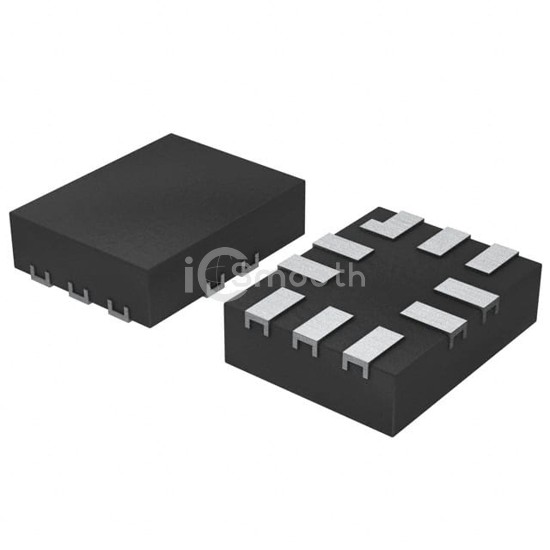

Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
