Name: UM4717Q
Brand: Union Semiconductor (HK) Limited
SKU: UM4717Q
Price: 0.43 USD
Availability: InStock

REF: UM4717Q Union Semiconductor (HK) Limited

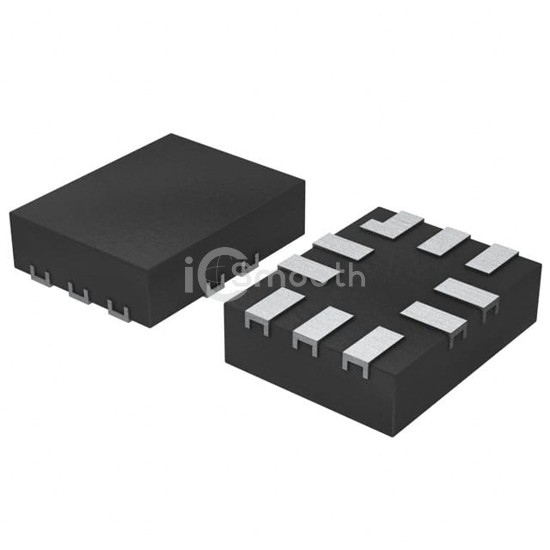

UM4717Q

Union Semiconductor (HK) Limited

DUAL SPDT ANALOG SWITCH

UM4717Q is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. DUAL SPDT ANALOG SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 9,966

Tiered Pricing USD

2+ $0.4250 —

100+ $0.3250 -24%

500+ $0.2500 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	3.5Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	1.8V ~ 5.5V
Switch Time (Ton, Toff) (Max)	80ns, 40ns

-3db Bandwidth	300MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	500pA
Crosstalk	-70dB @ 10MHz
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
