Name: UM4684H
Brand: Union Semiconductor (HK) Limited
SKU: UM4684H
Price: 0.51 USD
Availability: InStock

REF: UM4684H Union Semiconductor (HK) Limited

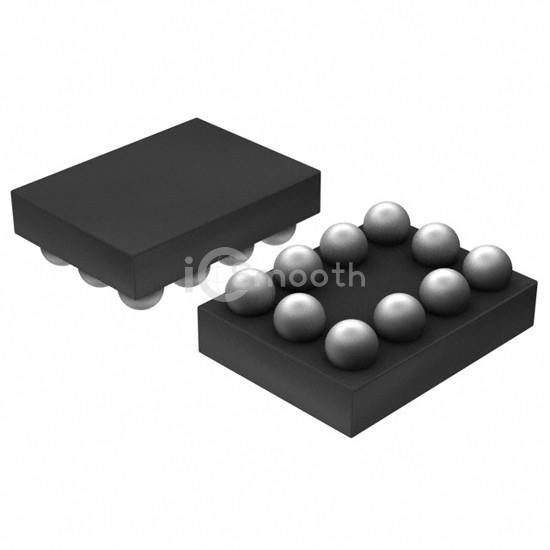

UM4684H

Union Semiconductor (HK) Limited

DUAL SPDT ANALOG SWITCH

UM4684H is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. DUAL SPDT ANALOG SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFBGA, CSPBGA, number of circuits 2.

Datasheet Request a Quote

In Stock: 10,000

Tiered Pricing USD

2+ $0.5050 —

100+ $0.3900 -23%

500+ $0.3000 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	800mOhm
Channel-to-Channel Matching (ΔRon)	500mOhm (Max)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	1.8V ~ 5.5V
Switch Time (Ton, Toff) (Max)	82ns, 73ns

-3db Bandwidth	20MHz
Charge Injection	21pC
Channel Capacitance (CS(off), CD(off))	10pF
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-69dB @ 100kHz
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-WFBGA, CSPBGA
Supplier Device Package	10-CSP (2.05x1.55)
