Name: UM2268
Brand: Union Semiconductor (HK) Limited
SKU: UM2268
Price: 0.43 USD
Availability: InStock

REF: UM2268 Union Semiconductor (HK) Limited

UM2268

Union Semiconductor (HK) Limited

DUAL SPDT ANALOG SWITCH

UM2268 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. DUAL SPDT ANALOG SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 10,000

Tiered Pricing USD

2+ $0.4250 —

100+ $0.3250 -24%

500+ $0.2500 -41% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	1.8V ~ 4.4V
Voltage - Supply, Dual (V±)	1.8V ~ 4.4V
Switch Time (Ton, Toff) (Max)	88ns, 16ns

-3db Bandwidth	80MHz
Charge Injection	4pC
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-90dB @ 1MHz
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount

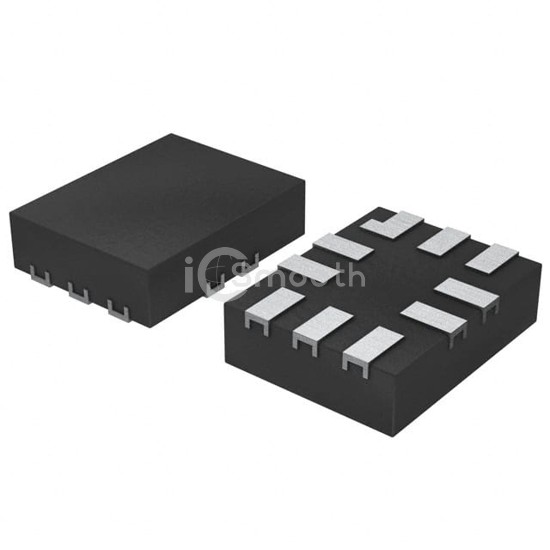

Package / Case	10-UFQFN
Supplier Device Package	10-QFN (1.8x1.4)
