OPI155

In Stock: 5,142

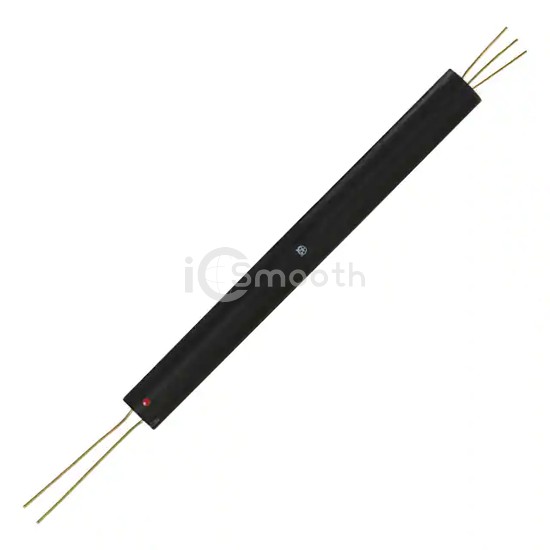

OPI155 - TT Electronics/Optek Technology - Optoisolators - Logic Output
REF: OPI155 TT Electronics/Optek Technology
OPI155

TT Electronics/Optek Technology

OPTOISO 50KV OPEN COLLECTOR

OPI155 is a Optoisolators - Logic Output manufactured by TT Electronics/Optek Technology. OPTOISO 50KV OPEN COLLECTOR. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 7V, current - output / channel 25 mA.

Datasheet Request a Quote

In Stock: 5,142

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation50000VDC
Common Mode Transient Immunity (Min)-
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel25 mA
Data Rate5Mbps
Propagation Delay tpLH / tpHL (Max)70ns, 120ns
Rise / Fall Time (Typ)-
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50mA
Voltage - Supply7V
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case-
Supplier Device Package-
