OPI1268

In Stock: 606

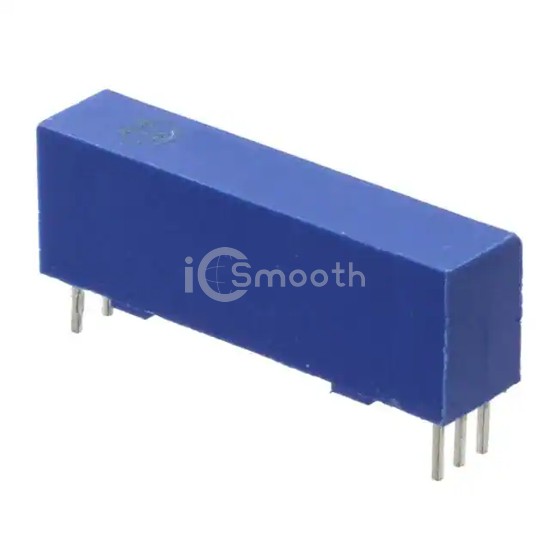

OPI1268 - TT Electronics/Optek Technology - Optoisolators - Logic Output
REF: OPI1268 TT Electronics/Optek Technology
OPI1268

TT Electronics/Optek Technology

OPTOISO 16KV OPEN COLLECTOR

OPI1268 is a Optoisolators - Logic Output manufactured by TT Electronics/Optek Technology. OPTOISO 16KV OPEN COLLECTOR. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, voltage - supply 7V, package / case 6-DIP (1.100", 27.94mm), 5 Leads.

Datasheet Request a Quote

In Stock: 606

Tiered Pricing USD
1+ $8.0100 —
100+ $7.2301 -10%
250+ $6.9500 -13%
500+ $6.7000 -16% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation16000VDC
Common Mode Transient Immunity (Min)-
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel25 mA
Data Rate2Mbps
Propagation Delay tpLH / tpHL (Max)200ns, 100ns
Rise / Fall Time (Typ)-
Voltage - Forward (Vf) (Typ)1.3V
Current - DC Forward (If) (Max)30mA
Voltage - Supply7V
Operating Temperature-40°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (1.100", 27.94mm), 5 Leads
Supplier Device Package-
