OPI1266

In Stock: 443

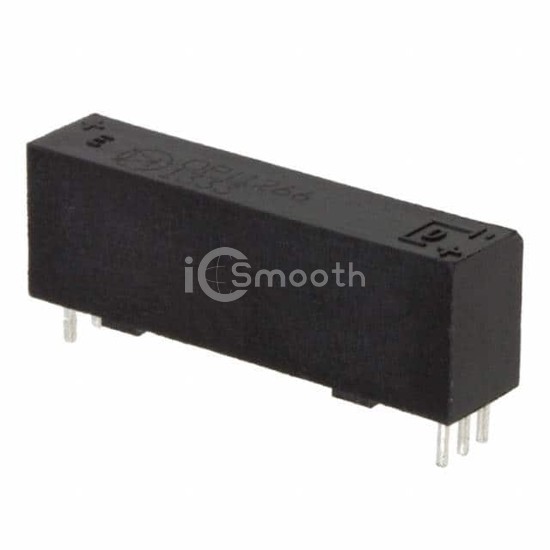

OPI1266 - TT Electronics/Optek Technology - Optoisolators - Logic Output
REF: OPI1266 TT Electronics/Optek Technology
OPI1266

TT Electronics/Optek Technology

OPTOISO 16KV OPEN COLLECTOR

OPI1266 is a Optoisolators - Logic Output manufactured by TT Electronics/Optek Technology. OPTOISO 16KV OPEN COLLECTOR. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, voltage - supply 7V, package / case 5-DIP.

Datasheet Request a Quote

In Stock: 443

Tiered Pricing USD
1+ $8.1000 —
100+ $7.3200 -10%
250+ $7.0600 -13%
500+ $6.7900 -16%
1,000+ $6.7750 -16% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation16000VDC
Common Mode Transient Immunity (Min)-
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel-
Data Rate500kbps
Propagation Delay tpLH / tpHL (Max)800ns, 800ns
Rise / Fall Time (Typ)-
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50mA
Voltage - Supply7V
Operating Temperature-40°C ~ 70°C
Mounting TypeThrough Hole
Package / Case5-DIP
Supplier Device Package-
