TPH3212PS

In Stock: 17

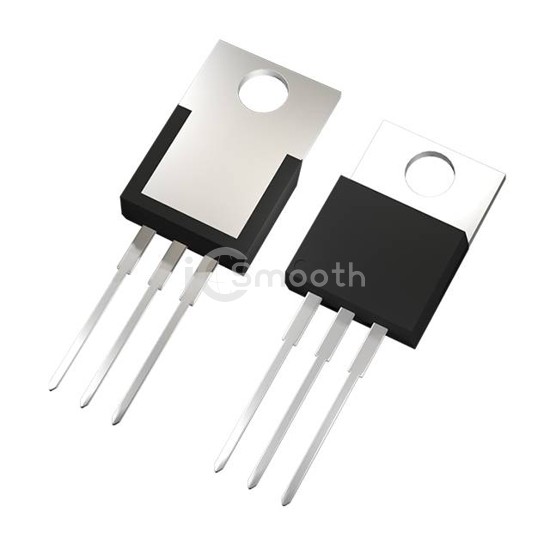

TPH3212PS - Transphorm - Transistors - FETs, MOSFETs - Single
REF: TPH3212PS Transphorm
TPH3212PS

Transphorm

GANFET N-CH 650V 27A TO220AB

TPH3212PS is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 27A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 17

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyGaNFET (Cascode Gallium Nitride FET)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C27A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs72mOhm @ 17A, 8V
Vgs(th) (Max) @ Id2.6V @ 400uA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 8 V
Vgs (Max)±18V
Input Capacitance (Ciss) (Max) @ Vds1130 pF @ 400 V
FET Feature-
Power Dissipation (Max)104W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
