Name: TPH3207WS
Brand: Transphorm
SKU: TPH3207WS
Price: 33.20 USD
Availability: InStock

REF: TPH3207WS Transphorm

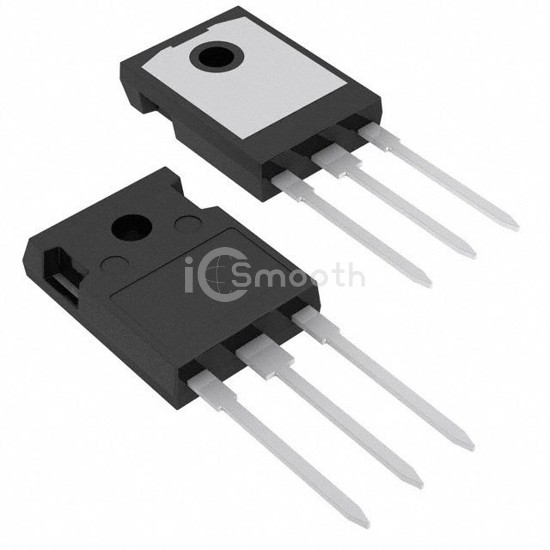

TPH3207WS

GANFET N-CH 650V 50A TO247-3

TPH3207WS is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 50A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 1

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	41mOhm @ 32A, 8V
Vgs(th) (Max) @ Id	2.65V @ 700µA
Gate Charge (Qg) (Max) @ Vgs	42 nC @ 8 V

Vgs (Max)	±18V
Input Capacitance (Ciss) (Max) @ Vds	2197 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	178W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
