Name: TPH3206LDB
Brand: Transphorm
SKU: TPH3206LDB
Availability: InStock

REF: TPH3206LDB Transphorm

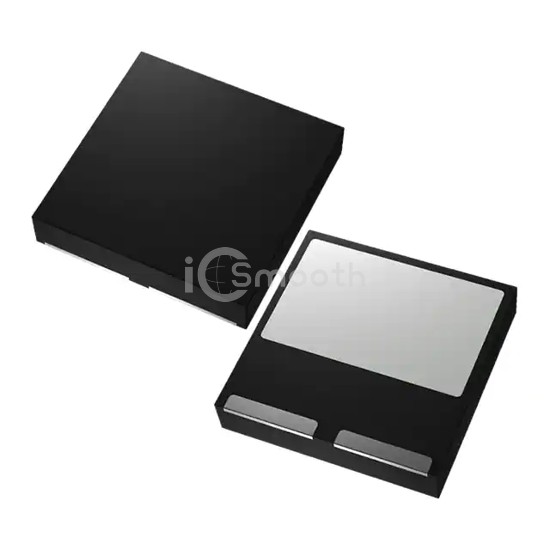

TPH3206LDB

GANFET N-CH 650V 16A PQFN

TPH3206LDB is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 16A PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-PowerDFN.

Datasheet Request a Quote

In Stock: 7,202

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	180mOhm @ 10A, 8V
Vgs(th) (Max) @ Id	2.6V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	6.2 nC @ 4.5 V

Vgs (Max)	±18V
Input Capacitance (Ciss) (Max) @ Vds	720 pF @ 480 V
FET Feature	-
Power Dissipation (Max)	81W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PQFN (8x8)
Package / Case	4-PowerDFN
