TPH3205WSBQA

In Stock: 364

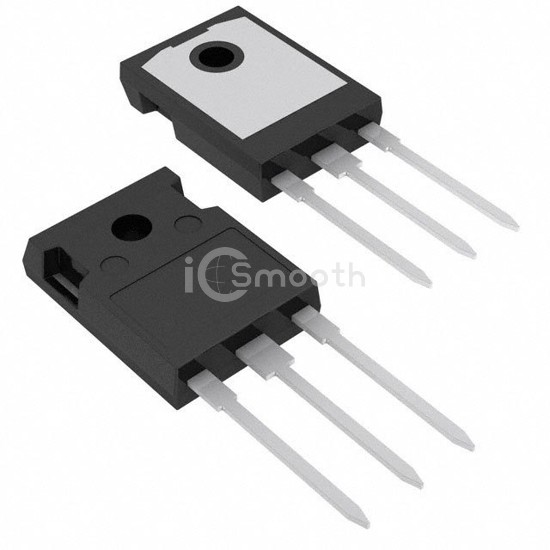

TPH3205WSBQA - Transphorm - Transistors - FETs, MOSFETs - Single
REF: TPH3205WSBQA Transphorm
TPH3205WSBQA

Transphorm

GANFET N-CH 650V 35A TO247-3

TPH3205WSBQA is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 35A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 364

Specifications

17 parameters
Product StatusNot For New Designs
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C35A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs62mOhm @ 22A, 8V
Vgs(th) (Max) @ Id2.6V @ 700µA
Gate Charge (Qg) (Max) @ Vgs42 nC @ 8 V
Vgs (Max)±18V
Input Capacitance (Ciss) (Max) @ Vds2200 pF @ 400 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
