Name: TPH3202LD
Brand: Transphorm
SKU: TPH3202LD
Availability: InStock

REF: TPH3202LD Transphorm

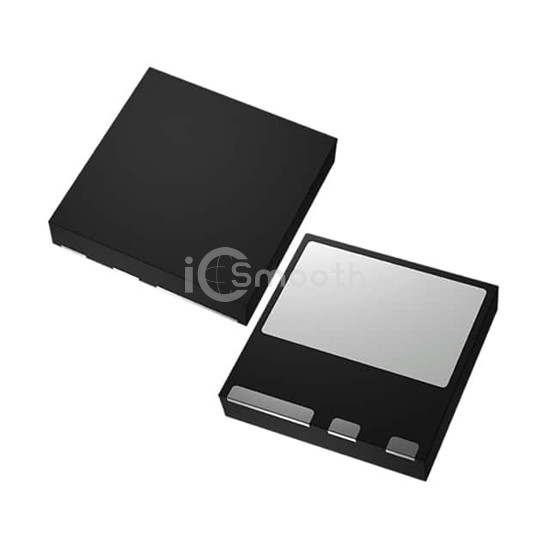

TPH3202LD

GANFET N-CH 600V 9A 4PQFN

TPH3202LD is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 600V 9A 4PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 4-PowerDFN.

Datasheet Request a Quote

In Stock: 7,159

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	350mOhm @ 5.5A, 8V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.3 nC @ 4.5 V

Vgs (Max)	±18V
Input Capacitance (Ciss) (Max) @ Vds	760 pF @ 480 V
FET Feature	-
Power Dissipation (Max)	65W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-PQFN (8x8)
Package / Case	4-PowerDFN
